8885, 8887, & 8889 Series


"U-Chang Plus" Field-Rekeyable Cam Locks

  • Features Baton's "U-Chang" 12-pin tubular key system.
  • Quickly rekey the lock to any of the 12 combinations using a change key without removing and reassembling the lock.
  • Lack of an inner driver and the unique keyway allows for maximum protection against lockpicking.
  • Triple plated alloy housing.
  • NAMA standard 3/4" diameter with 2 flats.
  • Standard single-pull cam locks have a 90 degree rotation with keys removable in the locked position only. 180 degree governors available.
  • Multiple key pull positions available, see chart below.
  • The M7 x 1.0 double 'D' tail piece will accomidate any cams or accessories that meets "NAMA" standards.
  • For a list of optional cams, click here.
  • Available keyed-alike or keyed-different.

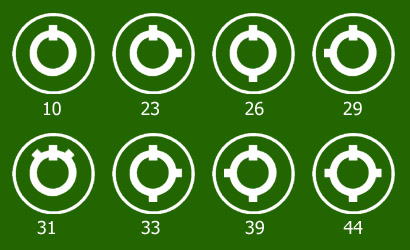

Key Pull Positons


To order, simply specify the number corresponding to the key pull style after the lock size.

For example: 8887-33 is a 7/8" cam lock with 12, 3 and 6 o'clock pulls.



Stock No. Thread Length Thread Dia
8885-( ) 16mm (5/8") 3/4" (19mm, M19 x 1.0), 2 flats
8887-( ) 22mm (7/8") 3/4" (19mm, M19 x 1.0), 2 flats
8889-( ) 28mm (1-1/8") 3/4" (19mm, M19 x 1.0), 2 flats






8885-10


8887-10


8889-10


8800 Change Key


8800 Operator Keys
