"U-Chang" Field-Rekeyable Cam Locks
- Features Baton's "U-Chang" 8-pin tubular key system.
- Quickly rekey the lock to any of the 8 combinations using a change key without removing and reassembling the lock.
- Triple plated alloy housing.
- NAMA standard 3/4" diameter with 2 flats.
- Standard single-pull cam locks have a 90 degree rotation with keys removable in the locked position only. 180 degree governors available.
- Multiple key pull positions available, see chart below.
- The M7 x 1.0 double 'D' tail piece will accomidate any cams or accessories that meets "NAMA" standards.
- For a list of optional cams, click here.
- Available keyed-alike or keyed-different.

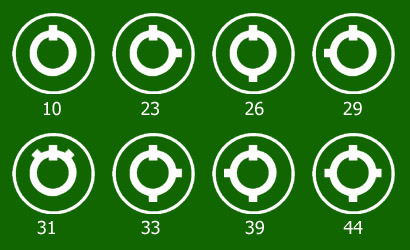

Key Pull Positons
To order, simply specify the number corresponding to the key pull style after the lock size.
For example: 7887-33 is a 7/8" cam lock with 12, 3 and 6 o'clock pulls.
| Stock No. | Thread Length | Thread Dia |
| 7885-( ) | 16mm (5/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7887-( ) | 22mm (7/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7889-( ) | 28mm (1-1/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
 7885-10 |
 7887-10 |
 7889-10 |
 7800 Change Key |
 7800 Operator Keys |
