Tubular Key Cam Locks
- Features Baton's 7000 series 7-pin tumbler tubular key system.
- Offers up to 600,000 unique key combinations.
- Triple plated alloy housing.
- NAMA standard 3/4" diameter with 2 flats.
- Standard single-pull cam locks have a 90 degree rotation with keys removable in the locked position only. 180 degree governors available.
- Multiple key pull positions available, see chart below.
- The M7 x 1.0 double 'D' tail piece will accomidate any cams or accessories that meets "NAMA" standards.
- For a list of optional cams, click here.
- Available keyed-alike or keyed-different.
- Factory rekeyable.

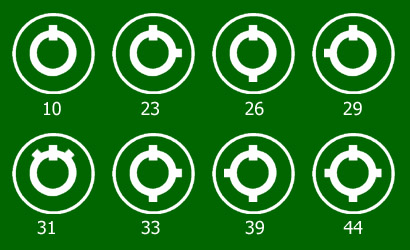

Key Pull Positons
To order, simply specify the number corresponding to the key pull style after the lock size.
For example: 7087-33 is a 7/8" cam lock with 12, 3 and 6 o'clock pulls.
| Stock No. | Thread Length | Thread Dia |
| 7084-( ) | 13mm (7/16") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7085-( ) | 16mm (5/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7087-( ) | 22mm (7/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7089-( ) | 28mm (1-1/8") | 3/4" (19mm, M19 x 1.0), 2 flats |
| 7090-( ) | 38mm (1-1/2") | 3/4" (19mm, M19 x 1.0), 2 flats |
 7084-10 |
 7085-10 |
 7087-10 |
 7089-10 |
 7090-10 |
